Old 04-28-2013, 10:16 PM   #1
Pebble Pounder
Join Date: Mar 2011
Location: Humboldt
Posts: 105
Default Shafty Resurrection

I've had my old gc3a sitting around for a while. I was contemplaing selling it. Then I saw thr xr axle mod and the itch to resurrect the old girl rather than put her out to pasture took hold. So I sold all the parts I wouldn't need after the mod to fund the new parts. Upgrades from a Novak Goat 2s esc to a Tekin FXR so i could run 3s. Since i got a new esc why not upgrade the motor, right? So i did. I linked up with Eddy ay Team Brood and had him build me a nice 35t custom job off the Creep can. It's pretty damn nice! The creation fab wide splined delrin tubes are simply put, super-duper awesomely wicked! I am stoked on the new found steering and better durability of the xr cvd's. I also fabbed up a front axle battery and electronics plate to bring everything up front. Now I just need some VVDs or 300s to op it all off.

New parts:
Tekin FXR and CC bec @6v
Team Brood Creep 35t type t, 9mm comm, team 10oz springs, epoxy balancing...etc
CKRC Punch Pack 1300 maH 3s lipos
JConcepts Stage Killah body
Creation fab wide splined delrin tubes
VP xr chubs and knux
7075 steering arms
Xr cvd axles
GripFab spools
Axial HD OD/UD diff gears
Fast Eddy bearings
Mini t cups and springs
Wicked Wolf big bore caps
32p 56t spur-9t RR pinion
Homebrew 3mm front axle battery/ electronics plate...made out of an aluminum road sign
Homebrew 8-32 all-thread steering links

What I had after selling parts from previous incarnation:
GC3a chassis
HH 1300 maH 2s lipos
Hitec 7955tg servo with GH HD 1" aluminum horn
All RR trans with 1 piece lower gear
1" VP SLW V3 wheels with 5.5" CI DD foams soft front/ soft rear with med tuning ring for now
3oz in each wheel (1 wrap)
MIP driveshafts
Ax10 axles with OG steel beef tubes in the rear
Big Bores with Losi golds
Gunnar body mounts

On with the pictures

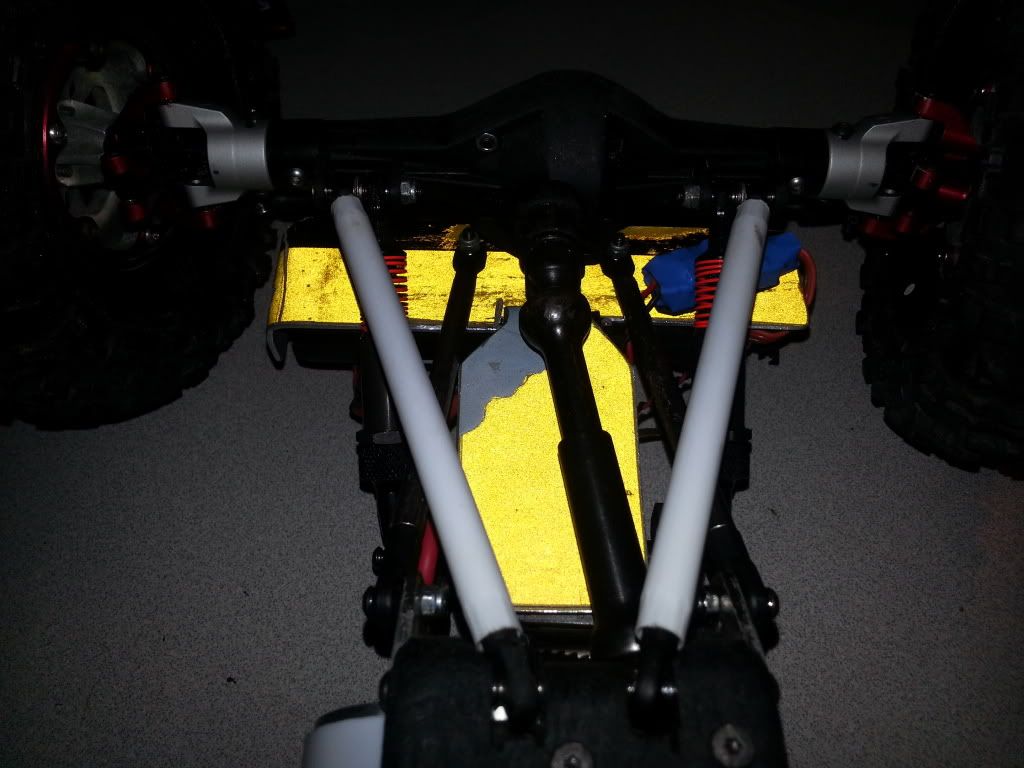

Went from this

To this
